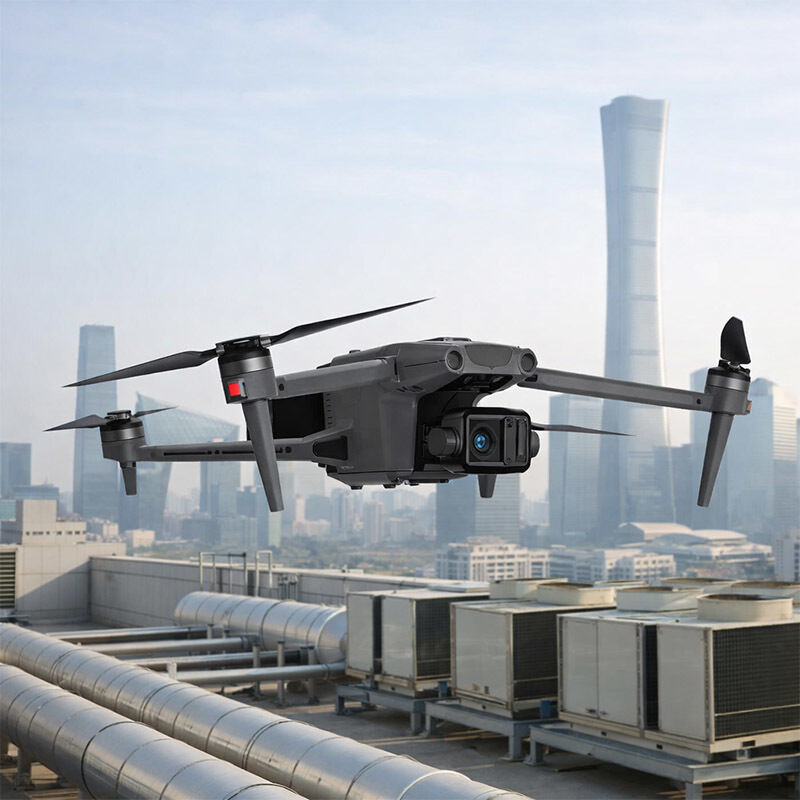

The ZAi-EM02 is a compact, highly integrated multirotor UAV designed for precision tasks in complex and dynamic environments. Built with a focus on reliability, sensing intelligence, and ease of deployment, it is well-suited for urban airspace, industrial inspection, and rapid-response missions.
Its lightweight structure combined with advanced sensing systems allows operators to deploy quickly without compromising on performance or situational awareness.
Intelligent Drone with Millimeter-Wave Radar and Vision System
The EM02 integrates millimeter-wave radar and a vision-based perception system, delivering enhanced environmental awareness in both clear and low-visibility conditions.
Core sensing capabilities include:
- Multi-layer obstacle detection for improved safety
- Stable navigation in cluttered or GPS-challenged environments
- Real-time environmental feedback for precise maneuvering
This dual-sensing architecture ensures reliable performance across diverse operational scenarios, from dense urban settings to industrial facilities.
Advanced Obstacle Avoidance Drone with 6-Directional Protection
Safety is central to the EM02 design. The platform features 6-directional obstacle avoidance, enabling it to detect and respond to hazards from multiple angles.
This makes it particularly effective for:
- Infrastructure inspection in tight spaces
- Close-range operations around buildings or equipment
- Autonomous missions requiring minimal manual intervention
The result is a UAV that reduces operational risk while maintaining efficiency and control.
Technical Specifications of ZAi-EM02 Intelligent UAV
| Parameter |
Specification |
| Wheelbase |
486 mm |
| Maximum Take-off Weight |
1750 g |
| Maximum Payload |
500 g |
| Flight Duration |
≥45 min (extended battery) |
| Maximum Speed |
21 m/s |
| Climb Speed |
8 m/s |
| Descent Speed |
6 m/s |
| Video Transmission Range |
Up to 15 km (unobstructed) |
| Obstacle Avoidance |
Vision system, 6-directional |
| Wind Resistance |
Level 6 |
| IP Rating |
IP43 |
| Operating Temperature |
-20°C to 50°C |
| GNSS |
GPS + Galileo + BeiDou + GLONASS |
| Modules System |
Multi-payload support |
| Geofencing |
Auto-lock on landing, No-fly zone restriction |
| Maximum Altitude |
6000 m |
Long-Endurance Small Drone for Field Efficiency
Despite its compact size, the EM02 offers extended flight endurance of up to 45 minutes, allowing operators to cover larger areas in a single mission.
Its efficient power system ensures:
- Reduced downtime between flights
- Increased productivity for inspection and monitoring tasks
- Lower operational costs over time
Combined with a 15 km video transmission range, operators gain greater flexibility and real-time situational awareness even at extended distances.
Industrial Drone Applications for Inspection, Security and Emergency Response
The ZAi-EM02 is tailored for a wide range of professional applications where agility and intelligence are critical:
- Power Line & Infrastructure Inspection – Accurate, close-proximity analysis
- Smart City Management – Traffic monitoring, urban planning, and surveillance
- Environmental Protection – Air quality monitoring, ecological surveys
- Emergency Response – Rapid deployment for search and rescue missions
- Event Security – Real-time aerial monitoring for large gatherings
Its compact footprint and intelligent systems make it ideal for operations where larger UAVs are impractical.
Modular Payload Drone with Flexible Integration
The EM02 supports standard electro-optical pods and modular payloads, allowing customization based on mission requirements.
Operators can easily adapt the platform for:
- High-resolution imaging
- Thermal inspection
- Data collection and analysis
- Communication relay
This flexibility ensures the EM02 remains a versatile asset across evolving operational needs.
Reliable UAV Performance in Challenging Environments
With Level 6 wind resistance, IP43 protection, and a wide operating temperature range, the EM02 is built to perform in real-world conditions.
Whether deployed in urban environments, industrial zones, or remote areas, it delivers consistent and dependable results.
Smart Flight Control with Autonomous Safety Features
The EM02 supports both manual control via remote controller and intelligent flight modes. Integrated geofencing and automatic landing lock functions enhance operational safety and regulatory compliance.
This balance between autonomy and control ensures ease of use for both experienced operators and new users.
Work with ZAi for Scalable Drone Solutions
ZAi is committed to delivering UAV systems that align with real operational demands. The EM02 is not just a compact drone—it is a scalable aerial solution designed for efficiency, intelligence, and adaptability.
Whether you are upgrading inspection workflows, enhancing urban management, or expanding your aerial capabilities, our team is ready to support your deployment.
Contact us today to explore how the ZAi-EM02 can elevate your operations.
